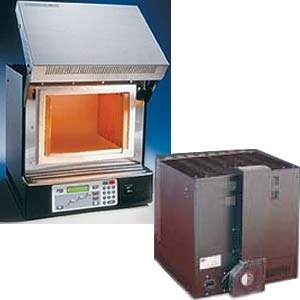

The Vulcan Model 3-1750A (230V 50/60Hz) is a digital, multi-stage programmable furnace featuring an Air Exchange design. Pre-heated air is drawn through the heating chamber using an exclusive air venturi exhaust design. The result is that combustion gases are more rapidly exhausted, increasing combustion uniformity and furnace life. The furnace is designed to meet ASTM D36174 specifications. Its digital multi-stage programmable controller allows you to adjust the rate of temperature climb with this easy-to-program option. The Vulcan 3-1750A like all Vulcan benchtop furnaces have a maximum temperature of 1000 Celsius or 2012 Fahrenheit. It comes with a 2 year limited warranty.
The Vulcan 3-1750A features High Performance Hybrid Muffle Technology exclusive to Vulcan benchtop furnaces for faster heating and cooling than full firebrick furnaces. It is constructed with a heavy gauge steel cabinet finished with a durable baked enamel coating.
Vulcan benchtop furnaces are available in three standard muffle sizes and each can be purchased with one of three different controllers. They are also available in various combinations of US and European power supplies.
Volume (Cu. In.): |
1750 |
Chamber (W x H x D) mm: |
360 x 250 x 320 |
Exterior (W x H x D) mm: |
610 x 545 x 500 |
Power: |
3100W (Max. <4800W) |
|
|
Model | 3-1750A | 3-550A | Control Type | 9-stage program, digital | 9-stage program, digital | Venturi-drive Preheated Air Exchange | Yes | Yes | Chamber Dimensions width depth height | 360mm (14") 320mm (12.5") 250mm (10") | 230mm (9") 230mm (9") 180mm (7") | Chamber Size | 1750 cu. in. | 550 cu. in. | Cabinet Dimensions width depth (open) height (door open) height (door closed) | 610mm (24") 535mm (21") 815mm (22") 545mm (21.5") | 400mm (15.8") 430mm (17") 630mm (25") 410mm (15.8") | Maximum Operating Temperature | 1100°C 2012 °F | 1100°C 2012 °F | Maximum Ramp Rate | 40°C/min 72°F/min | 40°C/min 72°F/min | Power Consumption (watts) | 3100w <4800 | 1300w <1500 | Watts to Maintain 1000° C | 2200 | 1050 | Net Weight | 47kg (102lbs) | 22kg (47lbs) |
|
|
Weight:
176.00 Pounds |
Dimensions:
26.00(L) x
26.00(W) x
26.00(H) Inches |
Weight Disclaimer: *Weight may vary based on configuration. |
|
|
|
SKU | Item | Price | |
9493985 |
9493985 : Neytech, Vulcan Multi-stage Programmable Furnace, Air Exchange, Model 3-550A, 550 cu. in., Digital, 9-Stage Program, 230V, 50/60Hz, 1 EA |
$2,534.00 |
|
|
|
