- CAL CHECK™
- User calibration
- Certified calibration and verification standards
- BEPS (Battery Error Prevention System)
- TIMER function
- Auto shut-off
- GLP Features

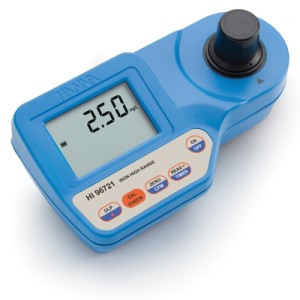

The HI 96721 meter measures total iron (Fe) content in water samples in the 0.00 to 5.00 mg/L (ppm) range. The reagent contains both a reducing and a complexing agent: the first converts all but very most resistant forms of iron present in the sample to the ferrous (Fe2+) or soluble state; the second reacts with the ferrous iron to form the characteristic orange-colored complex.
This meter uses an exclusive positive-locking system to ensure that the cuvette is in the same position every time it is placed into the measurement cell. It is designed to fit a cuvette with a larger neck making it easier to add both sample and reagents. The cuvette is made from special optical glass to obtain best results.
Order Information:
HI 96721C includes photometer, sample cuvettes with caps (2 ea.), CAL CHECK™ standard cuvettes, 9V battery, scissors, cloth for wiping cuvettes, instrument quality certificate, instruction manual and rigid carrying case.
|
|
Range |
|
0.00 to 5.00 mg/L |
Resolution |
|
0.01 mg/L (ppm) |
Accuracy |
|
±0.04 mg/L ± 2% of reading @ 25°C |
Light Source |
|
Tungsten lamp |
Light Detector |
|
Silicon photocell with narrow band interference
filter @ 525 nm |
Method |
|
adaptation of the USEPA method 315B and Standard Method 3500-Fe B |
Environment |
|
0 to 50°C (32 to 122°F); max 95% RH non-condensing |
Battery Type |
|
9V battery |
Auto-Shut off |
|
after ten minutes of non-use in measurement mode; after one hour of non-use in calibration mode; with last reading reminder |
Dimensions |
|
192 x 104 x 69 mm (7.6 x 4.1 x 2.7") |
Weight |
|
360 g (12.7 oz.) |
|
|
Weight:
4.00 Pounds |
Dimensions:
0.00(L) x
0.00(W) x
0.00(H) Inches |
Weight Disclaimer: *Weight may vary based on configuration. |
|
|
|
