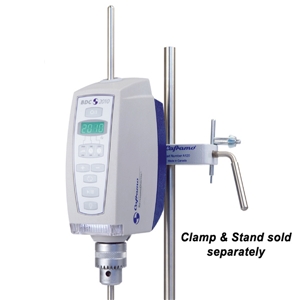

Flexible and Repeatable!
The BDC2010 delivers 50% more power than the BDC2002 while keeping the same compact footprint, Stirlight, and through shaft. The BDC2010 works smarter and allows the user complete mixing control. The stirring direction can be changed with the touch of the reversing button. The countdown timer times a stirring activity and beeps when completed. In xRx mode the stirrer is set up to continuously reverse from one direction to the other for a set length of time.
Countdown Timer
- Repeatable, accurate results
- Stirring stops when time is complete
Reversing
- Mixes in a clockwise or counter clockwise direction
- Offers different mixing with the same impellers
xRx Agitation
- Controllable vortex effect
- Quicker more complete mixing
- Eliminates air from sample
|
Brushless DC Motor
- 50% more power
- Maintains speed at all viscosities
- Provides automatic overload protection
Stirlight
- Shows stirring clearly
- Monitors mixing properties of batches
Through Shaft
- Impeller adjustment made easy
- Less downtime due to impeller changes
|
Chuck, chuck key, mounting support rod, external power supply, and grounded power cord included.
3 year warranty. Clamp, stand and impellers are sold separately. |
|
|
| Specifications: |
| Speed Range |
40 - 2010 rpm |
| Modes |
Countdown timer
Clockwise
Counter clockwise
xRx agitation |
| LED Display Accuracy | +/- 3% of reading |
| Maximum Torque | 100 N-cm |
| Output to Stirrer |
DC 24 V, 4.75 A, 90 W |
| Maximum Output Power |
1/10 hp, 70 watts, (Brushless DC Motor) |
| Power Supply |
AC 100-240 volts, 50/60 Hz
(Must use Caframo supplied power supply) |
| Stirrer Weight | 3.0 kg (7lbs) |
| Power Supply Weight | 0.6 kg (1.2lb) |
|
|
|
Weight:
9.10 Pounds |
|
Dimensions:
12.50(L) x
9.75(W) x
4.25(H) Inches |
|
Weight Disclaimer: *Weight may vary based on configuration. |
|
|
|
