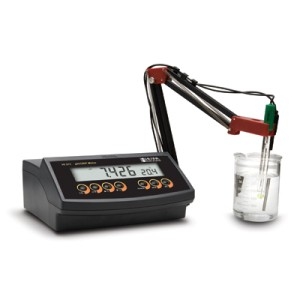

The HI2210 is a basic, affordable pH benchtop meter that features automatic calibration to 1 or 2 points with a choice of 5 preprogrammed buffers. All readings are automatically compensated for temperature variations from the supplied thermistor probe.
The meter has a large, easy-to-read LCD that displays pH and temperature simultaneously. The HI2210 is supplied complete with a pH electrode, temperature probe, calibration buffers, reference refill electrolyte, cleaning solutions, and a probe holder.
The HI2210 has two separate inputs for a BNC pH electrode and thermistor temperature probe. The BNC connector is a universal connector that is commonly available and allows the user to select from a wide variety of pH electrodes for their particular application. The separate temperature probe provides for a high 0.5°C accuracy measurement for precise temperature compensation.
Large, Clear Display
Easy Navigation
Universal BNC Connection
Features at-a-glance
-
Simple User Interface - Operation is simple with limited features that only require the use of a couple of buttons. Readings are easy to view on the large, clear display.
-
One or Two-Point Calibration - Automatic calibration can be performed at 1 or 2 points using the 5 preprogrammed buffers (4.01, 6.86, 7.01, 9.18, and 10.01).
-
HI1131B pH Electrode - The HI2210 is supplied with the HI1131B glass body, double junction, refillable pH electrode with an indicating sensor made of High Temperature (HT) glass. The double junction and HT glass design allows the HI1131B to be used in a wide variety of application from samples with metals and Tris buffer to samples at elevated temperatures.
-
Temperature Compensation - The HI2210 offers automatic or manual temperature compensation of pH measurements over a wide range from -9.9 to 120.0°C.
-
Stability Indicator - The HI2210 features a stability indicator. An hourglass appears on the display when there is instability in the reading. The hourglass disappears once the reading has stabilized. At that time a reading should be taken or stored.
-
Measurement Recall - The HI2210 has a “MEM” button to store a reading. The reading can be recalled at anytime by pressing the memory recall “MR” button.
|
|
pH Specifications
| pH Range | -2.00 to 16.00 pH |
| pH Resolution | 0.01 pH |
| pH Accuracy (@25ºC/77ºF) | ±0.01 pH |
| pH Calibration | automatic, one or two-point with five memorized buffer values (pH 4.01, 6.86, 7.01, 9.18, 10.01) |
Temperature Specifications
| Temperature Range | -9.9 to 120.0°C (14.2 to 248.0°F) |
| Temperature Resolution | 0.1 °C |
| Temperature Accuracy | ±0.5 °C (0.0 to100.0 °C); ±1 °C (outside) |
| Temperature Compensation | automatic or manual from -9.9 to 120.0°C |
Additional Specifications
| Electrode/Probe | glass body pH electrode with BNC connector |
| Temperature Probe | stainless steel temperature probe |
| Environment | 0 to 50°C (32 to 122°F), RH max 95% non-condensing |
| Input Impedance | 10¹² Ohms |
| Analog Output | 0 to 5 V according with: 0 to 14 pH or -1999 to +1999 mV; temperature always 0 |
| Power Supply | 12 VDC adapter (included) |
| Dimensions | 240 x 182 x 74mm (9.4 x 7.1 x 2.9”) |
| Ordering Information | HI2210 is supplied with HI1131B pH electrode, HI7662 temperature probe, HI76404N electrode holder, HI70004 pH 4.01 buffer solution sachet, HI70007 pH 7.01 buffer solution sachet, HI7082 electrolyte solution, HI700601 cleaning solution sachet, 12 VDC adapter, and instructions. |
|
|
|
Weight:
4.00 Pounds |
|
Dimensions:
14.00(L) x
12.00(W) x
10.00(H) Inches |
|
Weight Disclaimer: *Weight may vary based on configuration. |
|
|
|
