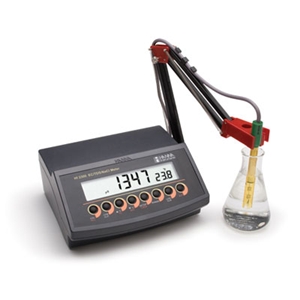

HI 2300 performs EC, TDS (Total Dissolved Solids), percentage of NaCl and temperature measurements. The auto-ranging feature for EC and TDS measurements automatically sets the resolution suitable to the tested sample.
All measurements can be temperature compensated at 20 or 25°C and the compensation coefficient is selectable by the user. The automatic temperature compensation can also be disabled for measuring the actual conductivity value. The stability indicator on the LCD ensures accuracy.
Conductivity readings are performed by applying an alternate current to the 4-ring probe which creates a variable voltage directly proportional to conductivity.
The GLP feature allows users to store and recall data about system status. - Larger LCD
- Log on Demand, up to 500 samples
- Extended temperature range
- Extended TC Range
- USB Connector
Order Information: HI 2300 is supplied with HI 76310 probe, 12 Vdc power adapter and instructions.
|
|
Range | EC | 0.00 to 29.99 µS/cm; 30.0 to 299.9 µS/cm; 300 to 2999 µS/cm; 3.00 to 29.99 mS/cm; 30.0 to 200.0 mS/cm; up to 500.0 mS/cm (actual EC) | Range | TDS | 0.00 to 14.99 mg/L (ppm); 15.0 to 149.9 mg/L (ppm); 150 to 1499 mg/L (ppm); 1.50 to 14.99 g/L (ppt); 15.0 to 100.0 g/L (ppt); up to 400.0 g/L (actual TDS), with 0.80 conversion factor | Range | NaCl | 0.0 to 400.0% | Range | Temperature | -9.9 to 120.0°C | Resolution | EC | 0.01 µS/cm; 0.1 µS/cm; 1 µS/cm; 0.01 mS/cm; 0.1 mS/cm | Resolution | TDS | 0.01 mg/L; 0.1 mg/L; 1 mg/L; 0.01 g/L; 0.1 g/L | Resolution | NaCl | 0.1% | Resolution | Temperature | 0.1°C | Accuracy | EC | ±1% of reading ±(0.05 µS/cm or 1 digit) | Accuracy | TDS | ±1% of reading ±(0.03 mg/L or 1 digit) | Accuracy | NaCl | ±1% of reading | Accuracy | Temperature | ±0.4°C | Calibration | EC | automatic, 1 point with 6 memorized values (84, 1413, 5000, 12880, 80000, 111800 µS/cm) | Calibration | NaCl | 1 point, with HI 7037 calibration solution | Calibration | Temperature | 2 point, at 0 to 50°C (32 to 122°F) | Temperature Compensation | | Automatic or manual, 0 to 60°C (32 to 140°F) | Temperature Coefficient | | selectable from 0.00 to 6.00%/°C (EC and TDS only) | TDS Conversion Factor | | selectable from 0.40 to 0.80 (default value 0.50) | Probe | | HI 76310, 4-ring platinum, internal temperature sensor | Auto Shut-off | | after 5 minutes of non-use (can be disabled) | Power Supply | | 12 Vdc adapter (included) | Environment | | 0 to 50°C (32 to 122°F); RH max 95% | Dimensions | | 240 x 182 x 74 mm (9.4 x 7.2 x 2.9") | Weight | | 1.1 kg (2.4 lb.) |
|
|
Weight:
2.60 Pounds |
Dimensions:
10.00(L) x
8.00(W) x
8.00(H) Inches |
Weight Disclaimer: *Weight may vary based on configuration. |
|
|
|
SKU | Item | Price | |
HI76304 |
HI 76304 : Conductivity/TDS probe for liquid measurement of HI 993310, amperometric, ATC, 2 m (6.6 ft) cable, Uitem sleeve |
$101.00 |
|
HI76305 |
HI 76305 : Conductivity/TDS probe for soil measurement of HI 993310, amperometric, ATC, 2 m (6.6 ft) cable, Uitem sleeve |
$143.00 |
|
HI76306 |
HI 76306 : Conductivity/TDS/tempurature probe, DIN with 1m cable |
$100.00 |
|
HI8033 |
HI 8033 : Conductivity/TDS meter |
$295.00 |
|
HI8633 |
HI 8633N : Conductivity meter with HI 76301D probe, new casing |
$320.00 |
|
HI8733 |
HI 8733N : Conductivity meter with HI 76302W probe, new casing |
$399.00 |
|
HI8734 |
HI 8734N : TDS meter , new casing |
$399.00 |
|
HI9033 |
HI 9033 : Conductivity meter with carrying case |
$530.00 |
|
HI9835 |
HI 9835N : EC TDS NaCl Temperature (C) meter with carrying case |
$735.00 |
|
HI 98360 |
HI 98360N : EC TDS NaC Temperature C meter with auto-end point, USB port in a hard carrying case |
$0.00 |
|
HI99300 |
HI 99300N : Waterproof (Low Range) EC/TDS/Temperature Meter with Amperometric Technology |
$185.00 |
|
HI99301 |
HI 99301N : Portable EC/C meter, 20.00 MS/10.00 ppt |
$185.00 |
|
HI993310 |
HI 993310 : Soil conductivity/salinity meter with carrying case |
$540.00 |
|
|
|
