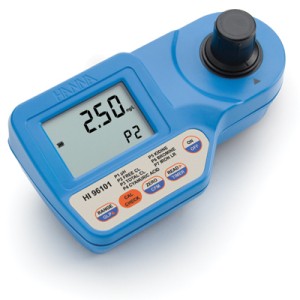

Replacement for HI 93101. This top-of-the-range multi-parameter photometer can save you time and money. If you need a simple, but professional meter measuring the most important constituents of water, especially in pools and spas, then HI 96101 has been designed for you. Order Information:
HI 96101 is supplied with (2) sample cuvettes with caps, 9V battery and instructions. CAL CHECK™ standards and reagents sold separately.
|
|
| Range | | | | | Bromine:0.00 to 8.00 mg/L (ppm); Free Chlorine:0.00 to 5.00 mg/L (ppm); Total Chlorine: 0.00 to 5.00 mg/L (ppm); Cyanuric Acid: 0 to 80 mg/L (ppm); Iodine: 0.0 to 12.5 mg/L (ppm); Iron: 0.00 to 1.60 mg/ (ppm)L; pH: 6.5 to 8.5 pH | | Resolution | | | | | Bromine:0.01 mg/L (ppm); Chlorine:0.01 mg/L (ppm) under 3.50mg/L, .10 mg/L above 3.50mg/L ; Cyanuric Acid:1 mg/L (ppm);Iodine: 0.1 mg/L (ppm); Iron: 0.02 mg/L (ppm); pH: 0.1 pH | | Accuracy | | | | | Bromine: ±0.08 mg/L (ppm) ±3%; Chlorine: ±0.03 mg/L (ppm) ±3%; Cyanuric Acid: ±1 mg/L (ppm) ±15%; Iodine: ±0.1 mg/L (ppm) ±5% of reading; Iron: ±0.01 mg/L (ppm) ±8% of reading; pH: ±0.1 | | Light Source | | Tungsten lamp | | Light Detector | | Silicon photocell with narrow band interference filter @ 525 nm | | Environment | | 0 to 50°C (32 to 122°F); RH max 95% non-condensing | | Power Supply | | (1) 9V battery | | Auto-off | | After 10 minutes of non-use in measuring mode; after 1 hour of non-use in calibration mode. | | Dimensions | | 192 x 102 x 67 mm (7.6 x 4 x 2.6”) | | Weight | | 290 g (10 oz.) | | Method | | Br2: DPD; Cl2: DPD; Cyanuric Acid: Turbidimetric; Iron: TPTZ I2: DPD; pH: Phenol red | | Typical EMC Deviation | | ±0.1 pH, ±0.01 mg/L Bromine, Chlorine, ±1 mg/L Cyanuric Acid, ±0.1 mg/L Iodine, ±0.02 mg/L Iron LR |
|
|
|
Weight:
0.63 Pounds |
|
Dimensions:
0.00(L) x
0.00(W) x
0.00(H) Inches |
|
Weight Disclaimer: *Weight may vary based on configuration. |
|
|
|
|
|
