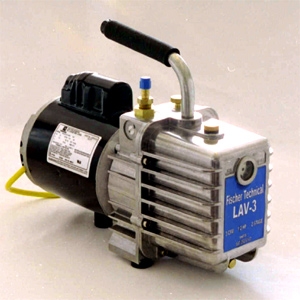

This direct drive pump provides the best Performance / Cost Ratios available today.
Comes complete with initial supply of High Vacuum Pump Oil. Ready To Operate.
- Two Stage: Produces 1 micron ultimate pressure
- Rotary Sliding Vane: Provides 85 liter per minute (3cfm) capacity,
operates quietly
- Direct Drive: Reduces space needed
- Gas Ballast: Helps purge moisture form vacuum system
- Trap: Reduces risk of oil suck back into the system
|
|
- Air Displacement: 85 liters per minute (3 cubic Feet per Minute)
- Ultimate Vacuum: 25 microns/laboratory conditions
- Pump Speed: 1725 RPM
- Motor: 1/2 HP 2200V, 60Hz
- Oil Capacity: 27oz. (785cc)
- Operating Temperature: 30º F to 170ºF
- Intake Port: 3/8” OD for 3/8” ID Tubing
- Weight: 30 lbs.
- Dimensions: 11” H x 14” L x 5 ¼” W (27.5cm x 35CM x 12.5cm)
|
|
|
Weight:
20.00 Pounds |
|
Dimensions:
18.00(L) x
9.00(W) x
14.00(H) Inches |
|
Weight Disclaimer: *Weight may vary based on configuration. |
|
|
|
| SKU | Item | Price | |
|
P11670-01 |
P11670-01 : Pump, Economical, Laboratory High Vacuum. Model LAV-3, 3CFM - 110V/60Hz, 1 EA |
$499.95 |
|
|
|
