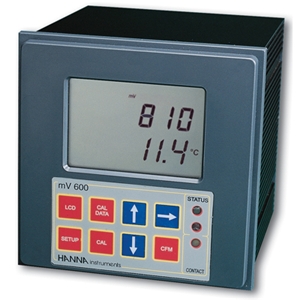

Microprocessor ORP Controller with Matching Pin- Wide mV range
- Cost effective
- Fail-safe alarm system
The mV 600 controllers have been engineered with the same outstanding features as the pH 500 meters. The microprocessor memory is fully programmable and has a 3 month backup power supply. The Fail Safe Alarm system protects these meters against the pitfalls of process control. User selectable timing capability safeguards against overdosing. These instruments have a differential input, extending electrode life by eliminating ground loop current through the reference. Users can choose between ON/OFF and Proportional control as well as selectable current and voltage outputs. For more flexibility and better resolution for chart recorders, choose any two points between 0 and 2000 mV to correspond to the analog output spans. RS232 capability makes two mV 600 models PC compatible. Wiring the controllers is simple with extractable terminal modules. A host of self-testing features and user-friendly functions make mV 600 a great value.
Each mV 600 model is supplied complete with mounting brackets and instructions. |
|
|
| Range | -2000 to 2000 mV | | Resolution | 1 mV | | Accuracy (@20°C/68°F) | ±2 mV | | Typical EMC Deviation | ±30mV | | Input Impedance | High impedance 1012 Ohm | | Calibration | At 0 and 350 or 1900 mV | | Readout | 4½-digit dual level LCD with graphic symbols and m | | Output | Digital: RS232 bi-directional opto-isolated; orAna | | Setpoint Relay | 1 or 2: SPST NO contact output 5A-250VAC, 5A-30VDC | | Battery Type / Life | mV 600/D: 230V ±15%VAC; 50 Hz; mV 600/U: 115V ±15V | | Environment | 32 to 122°F (0 to 50°C); max RH 85% non-condensing | | Dimensions | ½ DIN 5.7 x 5.7 x 6.7" (144 x 144 x 170 mm) | | Panel Cutout | 5.5 x 5.5" (140 x 140 mm) | | Weight | 3.5 lb. (1.6 Kg) |
|
|
|
Weight:
3.50 Pounds |
|
Dimensions:
0.00(L) x
0.00(W) x
0.00(H) Inches |
|
Weight Disclaimer: *Weight may vary based on configuration. |
|
|
|
|
|
