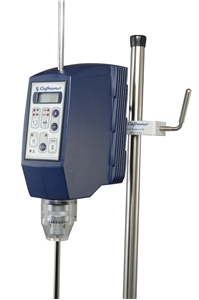

Caframo's BDC stirrers handle high volume / high viscosity stirring
as easily as dispersing and homogenizing.
- Three models offering a wide range of speed/torque capabilities.
- Constant speed! As the stirrers load increases an internal closed
loop feed back circuit directs more current to the stirrers motor.
- Two speed ranges. Low speed offers 5 times the torque as the high
speed range.
- Sparkless, fully enclosed brushless DC motor with sealed ball bearings.
- Quiet, Dependable and Maintenance Free.
- Adjustable chuck accepting up to 10.1 mm shafts.
- Single hollow stainless spindle.
- 1/5 horsepower motor, 150 watts
- Weight: 5 kg, 11 lbs
- Display Accuracy:
- Speed: ± 1 rpm or ± 1% of reading
- Torque: ± 1 in-lb or ± 5% of reading
|
|
Speed/Torque Range 1: |
12-360 rpm / 50 in-lbs |
|
Speed/Torque Range 2: |
360-1800 rpm / 10 in-lbs |
|
|
