| Description | Specifications/More Details | Shipping Specs | Downloads |
Caframo's BDC 3030 series stirrer handles high volume (60 L)/ high viscosity (50,000 cps) stirring
as easily as dispersing and homogenizing.
| Speed | Low speed range: 20 to 600 rpm
High speed range: 600 to 3000 rpm |
| Maximum Torque | Low speed range: 30 in-lbs = 480 in-oz = 339 N-cm
High speed range: 6 in-lbs = 96 in-oz = 68 N-cm |
| Safety Approvals | CSA, CE Marked, RoHS, WEEE |
| Speed Accuracy | +/- 1% of reading or +/- 1 rpm |
| Torque Accuracy | +/- 5% of reading or +/- 1 in-lb |
| Electrical Input |
120 Volts, 50/60 Hz, 5A |
| Output Power | 1/5 hp, 150 Watts |
| Weight | 11 lbs (5 kg) |
| Chuck | accepts up to 3/8'' (10.1 mm) shafts |
| Maximum volume | 15.8 US Gallons (60 Litres) |
| Maximum Viscosity | 50000 cps |
| Warranty | 3 Years |
| Customer Applications | Personal care products, Shampoo, Face cream, Pharmaceuticals, Tissue grinding |
| |
We are a Caframo approved vendor. |
|
|

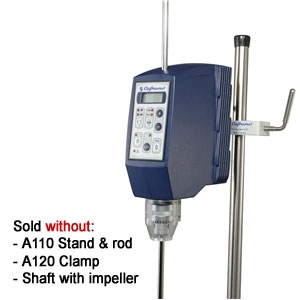

Caframo’s BDC 3030 series high torque stirrers are designed and engineered specifically to meet the demands of continuous use. The heart of the BDC line is the high performance Brushless Direct Current (BDC) motor. A unique two speed transmission in the BDC 3030 provides incredible amounts of power. Caframo stirrers are quiet, dependable, maintenance free and ideal for continuous use. Overhead stirrer motor, chuck, chuck guard, chuck key, power cord, manual in four languages (English, French, Spanish and German), calibration certificate and three year warranty. Expect to be impressed!
|
| Product Features of BDC 3030: |
Benefits of BDC 3030: |
- Preferred stirrer for General Lab / Cosmetic / R&D market
- Brushless DC Motor for very long life
- Chuck guard
- Totally enclosed metal housing
- Electronic Control
- Smart 2 Speed Transmission
- Through shaft
- Euro "Type F" (Schuko) plug
|
- High efficiency, less heat
- Safely encloses spinning chuck to protect user, protects chuck from splashes
- Precise speed adjustment
- Set speed is maintained as viscosity changes
- Transmission selects high-torque or high speed range
- Easy impeller adjustment saving time
|
|
Sample Application: Mixing General Lab / Cosmetic / R&D Ingedients
Caframo overhead stirrers have the power to mix viscous creams, gels emulsions and surfactants. Personal care product, flavour and fragrance companies use Caframo stirrers in their locations in California, New York, New Jersey, Dallas, Montreal and Toronto.
Stirrer
BDC3030
Overhead Stirrer
 |
|
Accessories
 | A120 Clamp |
 | A110 Stand |
|
Mixing Impellers - General Lab / Cosmetic / R&D
|
|
|
|
|
|
Speed/Torque Range 1: |
20-600 rpm / 30 in-lbs |
|
Speed/Torque Range 2: |
600-300 rpm / 6 in-lbs |
|
|
| SKU | Item | Price | |
|
S11719-03 |
S11719-03 : Caframo Ultra High Torque Overhead Stirrer (115V), BDC 1850, 1 EA |
$1,850.00 |
|
|
S11719-05 |
S11719-05 : Caframo Ultra High Speed Overhead Stirrer (115V), BDC 6015, 1 EA |
$1,850.00 |
|
|
S11731-01 |
S11731-01 : Caframo Universal Safety Stand, 28" Stainless Steel rod, A110, 1 EA |
$290.00 |
|
|
S11731-02 |
S11731-02 : Caframo Stirrer Clamp, A120, 1 EA |
$105.00 |
|
|
S11731-00 |
S11731-00 : A210 Safety Stand for Overhead Stirrer Caframo BDC2010, 24" Stainless Steel rod, 1 EA |
$260.00 |
|
|
S11288-01 |
S11288-01 : Caframo Reversing Digital Overhead Stirrer (115V), BDC 2010 |
$1,285.00 |
|
|
S11718-01 |
S11718-01 : Caframo Compact Digital Stirrer, Model BDC 2002, 1 EA |
$1,030.00 |
|
|
|
