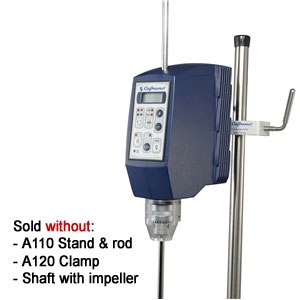

S11719-02 : Caframo Universal / General Purpose Overhead Stirrer (220V), BDC 3030-220, 1 EA


Contact us
Item #: S11719-02
Our Price: $1,550.00

Quantity:
More
Less

DescriptionSpecifications/More DetailsShipping SpecsDownloads
Caframo's BDC 3030 series stirrer handles high volume (60 L)/ high viscosity (50,000 cps) stirring as easily as dispersing and homogenizing.

SpeedLow speed range: 20 to 600 rpm
High speed range: 600 to 3000 rpm
Maximum TorqueLow speed range: 30 in-lbs = 480 in-oz = 339 N-cm
High speed range: 6 in-lbs = 96 in-oz = 68 N-cm
Safety ApprovalsCSA, CE Marked, RoHS, WEEE
Speed Accuracy+/- 1% of reading or +/- 1 rpm
Torque Accuracy+/- 5% of reading or +/- 1 in-lb
Electrical Input Euro 220 Volts 50/60 Hz, 3A
Output Power1/5 hp, 150 Watts
Weight11 lbs (5 kg)
Chuckaccepts up to 3/8'' (10.1 mm) shafts
Maximum volume15.8 US Gallons (60 Litres)
Maximum Viscosity50000 cps
Warranty3 Years
Customer ApplicationsPersonal care products, Shampoo, Face cream, Pharmaceuticals, Tissue grinding

We are a Caframo approved vendor.

Please note the 220V version of BDC 3030 shown here is supplied with the European "Type F" (Schuko) style plug. Any attempt to run 220V Euro version on US power supply will void all warranties.

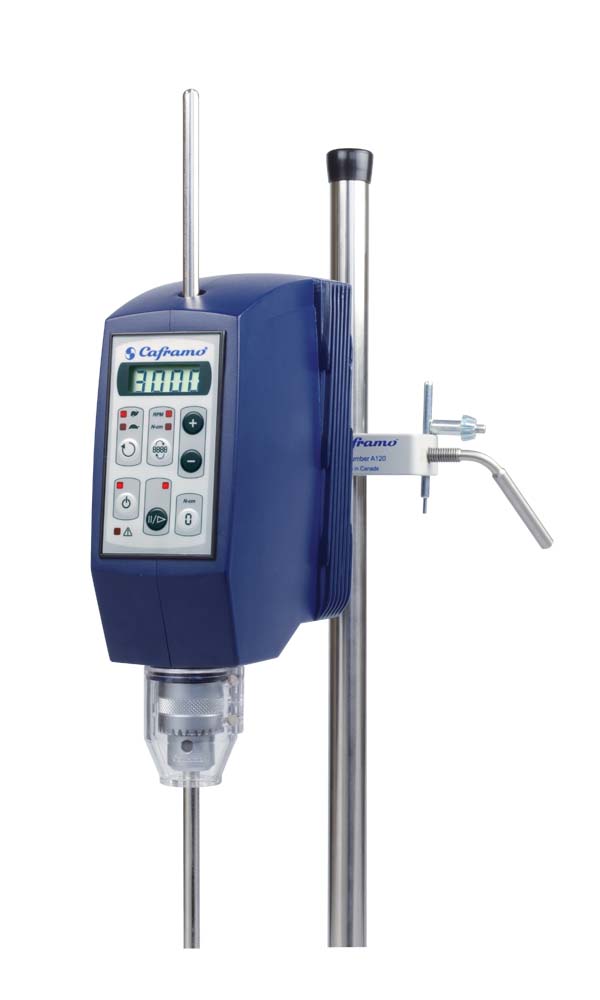

Caframo’s BDC 3030 series high torque stirrers are designed and engineered specifically to meet the demands of continuous use. The heart of the BDC line is the high performance Brushless Direct Current (BDC) motor. A unique two speed transmission in the BDC 3030 provides incredible amounts of power. Caframo stirrers are quiet, dependable, maintenance free and ideal for continuous use. Overhead stirrer motor, chuck, chuck guard, chuck key, power cord, manual in four languages (English, French, Spanish and German), calibration certificate and three year warranty. Expect to be impressed!



Product Features of BDC 3030-220V: Benefits of BDC 3030:
  • Preferred stirrer for General Lab / Cosmetic / R&D market
  • Brushless DC Motor for very long life
  • Chuck guard
  • Totally enclosed metal housing
  • Electronic Control
  • Smart 2 Speed Transmission
  • Through shaft
  • Euro "Type F" (Schuko) plug
  • High efficiency, less heat
  • Safely encloses spinning chuck to protect user, protects chuck from splashes
  • Precise speed adjustment
  • Set speed is maintained as viscosity changes
  • Transmission selects high-torque or high speed range
  • Easy impeller adjustment saving time


Sample Application: Mixing General Lab / Cosmetic / R&D Ingedients

Caframo overhead stirrers have the power to mix viscous creams, gels emulsions and surfactants. Personal care product, flavour and fragrance companies use Caframo stirrers in their locations in California, New York, New Jersey, Dallas, Montreal and Toronto.

Stirrer

Accessories

Mixing Impellers - General Lab / Cosmetic / R&D

Speed/Torque Range 1: 20-600 rpm / 30 in-lbs
Speed/Torque Range 2: 600-300 rpm / 6 in-lbs
