| Caframo's BDC stirrers handle high volume / high viscosity stirring as easily as dispersing and homogenizing. Please note the 220V version of BDC 3030 shown here can automatically switch between European and US power supply. It is supplied with the European "Type F" (Schuko) style plug or C12 plug for the US 120V supply. - Three models offering a wide range of speed/torque capabilities.
- Constant speed! As the stirrers load increases an internal closed loop feed back circuit directs more current to the stirrers motor.
- Two speed ranges. Low speed offers 5 times the torque as the high speed range.
- Sparkless, fully enclosed brushless DC motor with sealed ball bearings.
- Quiet, Dependable and Maintenance Free.
- Adjustable chuck accepting up to 10.1 mm shafts.
- Single hollow stainless spindle.
- 1/5 horsepower motor, 150 watts
- Weight: 5 kg, 11 lbs
- Display Accuracy:
- Speed: ± 1 rpm or ± 1% of reading
- Torque: ± 1 in-lb or ± 5% of reading
|
|
Speed/Torque Range 1: |
40-1200 rpm / 15 in-lbs |
|
Speed/Torque Range 2: |
1200-6000 rpm / 3 in-lbs |
|
|
A line of stirrers with accurate control for precision research
and power for high colume / high viscosity lab or pilot plant applications.
Caframo's reliable and powerful stirrers also incorporate safety. each stirrer
comes with a clear chemical resistant hinged chuck guard that conveniently
snaps onto the stirrer.
The heart of the BDC line is the microprocessor controlled, high performance
Brushless Direct Current (BDC) motor. A unique Two Speed Transmission transfers
the motor's power to the chuck with 95% efficiency, providing incredible
amounts of power.
|
| Electrical Input |
120V, 50/60 Hz, 5A |
| Output Power |
1/5 hp, 150 Watts |
| Measurements (L x W x H): |
20 x 9.5 x 23 cm
8 x 3.75 x 9 in. |
Ultra Torque stirrer for stirring tar, gravel, resins, adhesives or
solutions with a high viscosity: BDC1850 ranges from 12-1800 rpm
Speed/Torque Range 1:
| Speed |
Torque |
| 12-360 rpm |
50 in-lbs |
Speed/Torque Range 2:
| Speed |
Torque |
| 360-1800 rpm |
10 in-lbs |
|
| Available in 115 or 220
volts |
|
Universal / General purpose stirring: BDC3030 ranges from 20-3000
rpm
Speed/Torque Range 1:
| Speed |
Torque |
| 20-600 rpm |
30 in-lbs |
Speed/Torque Range 2:
| Speed |
Torque |
| 600-3000 rpm |
6 in-lbs |
|
| Available in 115 or 220 volts |
|

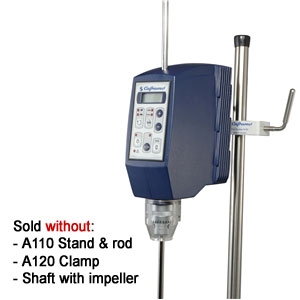

Ultra speed performer for stirring anything at higher speeds: BDC6015
ranges from 40-6000 rpm
Speed/Torque Range 1:
| Speed |
Torque |
| 40-1200 rpm |
15 in-lbs |
Speed/Torque Range 2:
| Speed |
Torque |
| 1200-6000 rpm |
3 in-lbs |
|
Available in 115 or 220 volts |
|
|
|
|
Weight:
18.00 Pounds |
|
Dimensions:
19.00(L) x
15.00(W) x
8.00(H) Inches |
|
Weight Disclaimer: *Weight may vary based on configuration. |
|
|
|
| SKU | Item | Price | |
|
S11719-02 |
S11719-02 : Caframo Universal / General Purpose Overhead Stirrer (220V), BDC 3030-220, 1 EA |
$1,940.00 |
|
|
S11719-04 |
S11719-04 : Caframo Ultra High Torque Overhead Stirrer (220V), BDC 1850-220, 1 EA |
$1,940.00 |
|
|
S11719-01 |
S11719-01 : Caframo Universal / General Purpose Overhead Stirrer (115V), BDC 3030, 1 EA |
$1,850.00 |
|
|
S11719-05 |
S11719-05 : Caframo Ultra High Speed Overhead Stirrer (115V), BDC 6015, 1 EA |
$1,850.00 |
|
|
S11719-03 |
S11719-03 : Caframo Ultra High Torque Overhead Stirrer (115V), BDC 1850, 1 EA |
$1,850.00 |
|
|
|
